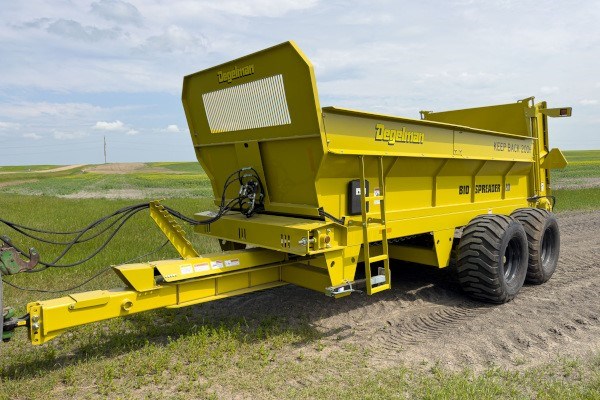

Degelman Bio Spreader 20

Key Features

Can achieve up to 50 ft wide and 100 ft long spread pattern.
Live floor gives the option to unload all of its material in as little as 90 seconds.
Longer hitch allows for a tighter turning radius for better maneuverability in tight spaces.
Thicker abrasion-resistant teeth are significantly harder than regular steel so they last longer and can be easily replaced. Unique double-shear tooth retainer (patent pending).

MODEL	Bio Spreader 20
Overall Length	355 in.
Overall Height	122 in.
Overall Width	128 in.
Overall Inside Width	72.5 in.
Hitch Height	19 in.
Tire Capacity	550/60/22.5 (13,200 lbs each)
Loading Height (w/o extension)	79 in.
Loading Height (w/ extension)	93 in.
Box Inside Length	227 in.
Box Inside Height (w/o extension)	31 in.
Box Inside Height (w/ extension)	45 in.
Unit Weight	15,500 lbs.
Maximum Net Load	41,600 lbs.
Capacity Extensions
Struck Level	415 cu ft.
Heaped	555 cu ft.
Maximum	672 cu ft.
Construction
Floor and Sides	Steel 3/16 in.
Each Axle Spindle Capacity	20,000 lbs.*
Hydraulic Lift End Gate	Standard
Tongue Weight -% of Gross Weight	12%
BEATERS
Replaceable Paddles or Teeth	32
Diameter (lower paddle)	35
Diameter Paddle Flighting 3/8" Hardened Steel	26.5
Diameter (Spike Teeth) 3/4" Hardened Steel	32.6
Overload Protection Horizontal Beaters	PTO Shear Bold - Beater Urethane Coupler
Easily Removable Beater Assembly	Yes
BEATER PTO DRIVE
RPM	1000
Gearbox Ratio	43.6:1
No. of Gearboxes	3
Chain Size	3/4 in. Grade 80
Chain Speed (Maximum RPM) 20 GPM	10
Gearbox Drive	Dual Hydraulic Motors 80 cc with Pressure Relief Forward & Reverse
Standard Spreader Hitch	CAT 4 2" Articulating Insert with Reducer to Accommodate 1.5" Pin
Horsepower Requirement	200 HP Minimum

Bio Spreader 20
