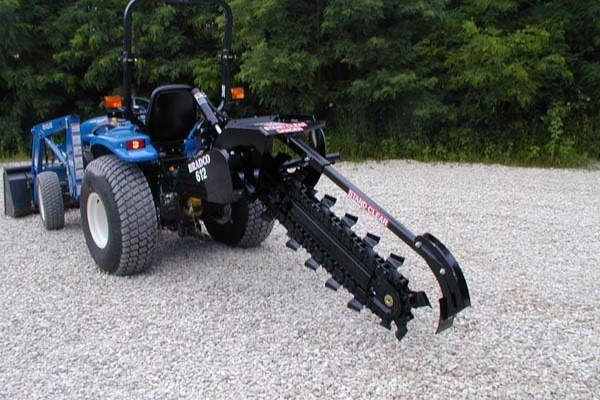

Paladin Attachment Model 612

PTO shaft-drive with heavy-duty slip clutch for overload protection
Gearbox drive with chain reduction to the head-shaft gives productive digging chain speed
24" discharge auger places dirt well away from the trench
Several tooth options available; Cup, Shark, Rock & Frost
50,000 lb 2" anti-back flex-chain
Two-year limited warranty

Model	612
Category I
3-Point Mounting
Trench Depth	30”, 36”, 48”, 60”
Trench Width	6”, 8”, 10”, 12”
Trenching Angle	65º
Auger Diameter	24"
Width	43”
Headshaft Height (auger at grade)	12"
3-point Length to Headshaft	24"
Spoil Discharge Reach	29"
Transport Height	varies
Center of Trencher to End of Auger	27"
Trencher Length with 4' boom	96"
Maximum Trenching Depths Based on Trench Width
6" wide	60" deep
8" wide	48" deep
10" wide	36" deep
12" wide	30" deep
Digging Chain Specifications
Double standard, anti-backflex	50,000 lbs
Standard chain pitch	2”

Model 612
