Wacker Neuson DV60

Swiveling operator's seat with plenty of legroom

• The new rotating seat offers extensive legroom and space for the operator. He can move freely and can still turn the seat while sitting, without restrictions.

Seat belt monitoring with start release

• The seat belt monitoring system signals visually and acoustically if an attempt is made to start the machine when the operator is not wearing a seat belt. The additional start release prevents start-up in this case.
• The safety during operation is increased once again and improper starting is thus prevented.

Fold-down armrest for entry and exit from both sides

• The right armrest of the control panel, including the joystick, can be folded up and down. It thus allows entry and exit from both sides, even when the seat is turned towards the skip.
• This saves valuable time for the operator, so that he does not have to turn the seat again after loading to get out.

Power version

• More power, more bite. With the larger engine, you immediately feel the increased power during all work and on the road.
• The Power version offers additional power to cope with even the most difficult terrain.
• Even on gradients in fully loaded condition, the machine has no problems maintaining its high tractive force and acceleration.

Hill-Hold function

• The integrated hill-hold function prevents the machine from rolling back when at standstill, as soon as the foot is taken off the gas pedal.
• The machine is braked automatically and secured against rolling back.

MORE FEATURES

ECO-FRIENDLINESS

Auto-stop function

• The built-in auto-stop function switches the machine off after 5 minutes without use. This period of time can be adjusted and the operator is notified visually and acoustically before switching off.
• Electrical loads, such as headlights, are also switched off to conserve the machine's battery. Operating costs are reduced, maintenance intervals are extended and resale value increases.
• The resulting reduction in engine running time reduces exhaust emissions/CO2.

Extended maintenance intervals

• The long maintenance intervals of 500 operating hours make possible additional cost savings due to fewer service and maintenance intervals divided over the entire use.

SAFETY

Sturdy skip guard

• The skip guard protects the operator and the cab from falling material, even while driving.
• It provides for additional safety even during loading. The protective skip grating was designed and tested for this, based on ISO 10262, front protective grating Level 2.
• The skip guard can withstand the impact of an excavator bucket with the maximum force of a 15-metric ton excavator.

Rear LED lights incl. dynamic turn signals

• The rear LED lights are recognizable even from a distance and shine a bright and noticeable light. The motion of the dynamic turn signals also installed runs from the inside outward. This focuses attention on the surroundings when turning and the risk of accidents or misunderstandings can be minimized.

Washing system for cameras

• The washing system relieves the machine’s camera of dirt and contamination, thus keeping the field of view free. Obstacles and objects can thus be recognized even without manual cleaning.

Entry in high visibility color

• The entry in caution red increases safety and gives the steps and handle better visibility.
• This draws more attention to these areas important for safety when entering and exiting.

Belt and rotating beacon in signal color

• The orange-colored seat belt is connected with the green LED lamp on the outside of the machine. It lights up when the seat belt is being used and the driver is operating the machine in a properly secured manner. This allows a control function to be perceived from outside.

Seat contact switch

• The seat contact switch increases safety on the construction site, as the operator has to sit down to be able to operate the machine properly and efficiently.
• If the operator isn’t sitting, the machine cannot be operated.

Automatic brake lights with the hydrostatic braking function

• The hydrostatic braking function ensures that the dumper is braked when the operator takes his foot off the throttle pedal and, at that moment, activates the brake lights.
• This lets other people involved on the construction site, as well as vehicles following, at the earliest point that the machine is slowing down so they can react accordingly early on.

Front and rearview camera

• The view cameras attached at front and rear minimize the machine’s blind spot and provide double protection for the surroundings.
• The driver sees more clearly what is happening around him and can detect obstacles at an early stage. This increases safety enormously for the driver, the machine and the environment.
• With protection class IP69, they are very tough and sturdy.

Side indicators

• For increased visibility and safety, indicators are also attached to the side of the machine, which announce a turning maneuver about to take place and make it more visible.
• This once again increases safety considerably through increased attention.

EFFICIENCY

Hydrostatic 4-wheel drive with automatic ECO mode

• Just hop on and go: with the hydrostatic 4-wheel drive, the operator can concentrate on his work without frequent gear shifting.
• A continuously constant tractive force from 0 to the maximum speed and a hydrostatic brake provide for a comfortable driving experience.
• The machine's automatic ECO mode is an asset to cost and environmentally-conscious users as it ensures minimal consumption with optimum power use.

Lockable storage options in the wheel case

• The storage options in the non-slip standing area of the wheel case are both waterproof and lockable and provide the operator with the option of stowing articles that should not be exposed to the weather conditions.

Tinted windows with UV protection

• The slightly tinted windows of the cab greatly reduces UV radiation and noise.
• On sunny work days, operators do not need to use any additional protective measures such as sunglasses or other sun protection. This increases user-friendliness as well as efficiency.
• The operator is optimally protected by the laminated safety glass.

Easy service and maintenance access

• Die leicht erreichbaren Service- und Wartungszugänge machen die täglichen Kontrollen, genauso wie die regelmäßige Wartung und Instandhaltung, einfach und zeitsparend.
• In optimaler Höhe platziert und ohne großen Aufwand erreicht man schnell alle Service- und Wartungspunkte, um die täglichen Routinearbeiten ohne großen Zeitaufwand abzuschließen.

Spring-loaded parking brake

• The spring-loaded parking brake is automatically activated when the engine is switched off. The user does not have to operate it manually. Manual electro-hydraulic actuation is also possible via the toggle switch.
• The wear-free design makes it very durable and reliable.

Radio with Bluetooth intercommunication station

• The optional radio is equipped with a Bluetooth hands-free installation and offers USB charging connections.

COMFORT

Cab

• A strong plus, especially in the rain, cold or heat: the ideally equipped cab, makes work comfortable year-round for the operator, and also offers the highest level of safety with ROPS/FOPS Level II certification. (DIN EN ISO 3471 and 3449)
• The cab is equipped for comfort with the optimal arrangement of all switches and control elements for efficient working.
• Storage options (cup holder, area for mobile phone, etc.) and the high quality or workmanship provide a high level of working comfort.

Premium seat

• A premium seat made of synthetic leather ensures the comfort factor for the operator, even in the basic machine. As an optional air-cushioned version in fabric, the operating comfort is increased even further.
• Both versions are equipped with a high backrest and thus provide high support for the operator's body.

Air-conditioning system

• The optional air-conditioning system ensures the perfect temperature for work and ideal air circulation within the cab.
• This keeps the operator’s working environment as pleasant as possible, which increases the effectiveness of the work.

Adjustable Premium steering wheel

• The optimized steering wheel adjustment allows optimal personalization for pleasant driving comfort.
• The steering wheel can be adjusted to any comfortable position with just a movement of the hand, resulting in a more comfortable posture and operation.

StVO-suitable protective grating

• Thanks to the new protective grating for rear lights, these are already StVO-suitable ex works and do not have to be removed for driving on streets.
• The visibility of the LED headlights is given despite the protective grating, which means it is also approved for driving on streets.

PERFORMANCE

Speed regulation system

• The speed regulation system automatically maintains the speed of the machine where possible, provided it is activated. This way, the operator doesn’t have to concentrate on his speed and can enjoy the comfort of automation.

Technical Data

Mechanical - output details

Mechanical Details

Engine

Hydraulic

Chassis

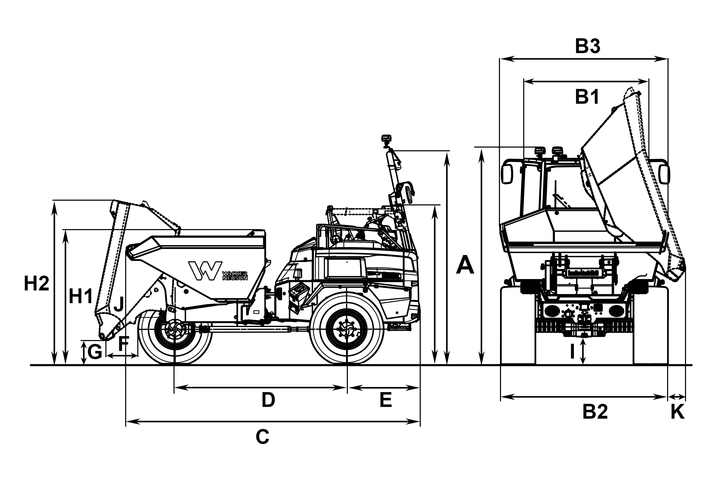

DIMENSIONS
