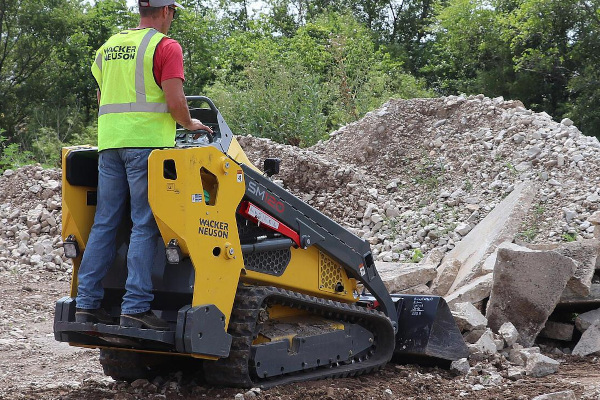

Wacker Neuson SM120
Features
All Day Comfort
- Large, spring-suspended operator platform provides comfort and a stable base for the operator.
- Fine tuned, forward angled joysticks, position the operator’s hands in a neutral position to reduce fatigue.
- Plush padding provides comfort and stability; Additional creature comforts include a cup holder, 12v charging port and storage compartment.
Extra Wide Tracks
- The SM120 has extra Wide Tracks that reduce ground pressure to among the lowest in the class, which reduces the potential for site damage and provides a stable ride.
MORE FEATURES
SAFETY
Industry Leading Safety Features
- Operator presence pedal & hydraulic function lockouts prevent accidental movement of lift arm and drive functions
Enhanced Stabililty
- Extra wide tracks provide an extra measure of side to side stability while traveling over rough terrain.
MAINTENANCE
Professional Grade Undercarriage
- Durable undercarriage reduces maintenance costs and Total Cost of Ownership through innovative design and quick maintenance.
- Sealed idlers and triple flanged rollers provide added surface area and engagement to reduce wear and de-tracking.
- Achieving optimal track tension is quick and painless with an integrated grease cylinder track tensioner.
COMFORT
Front Mounted Cooler
- Front mounted coolers means no hot or dusty air is blown across the operator’s legs.
PERFORMANCE
Premium Performance
- The SM100 is powered by a 24.7 horsepower Yanmar diesel engine providing high torque and a flat power curve to enhance productivity through fast cycling times and expectational pushing power.
- 13 gpm of auxiliary hydraulic flow is available to power a wide variety of money saving attachments.
Specifications
Technical Data
Mechanical - output details
| Ground Pressure (standard track) | 2.9 psi |
| Travel speed | 5 m/H |
| Break Out Force Bucket | 14.4 kN |
| Break Out Force Lift Arm | 15.1 kN |
Mechanical Details
| Overall Length without bucket | 108.3 " |
| Overall Length with Bucket | 126 " |
| Overall width without bucket | 41 " |
| Height | 58.2 " |
| Bucket Hinge Pin Height | 85.7 " |
| Bucket roll back at ground | 25 ° |
| Bucket roll back at maximum height | 92 ° |
| Angle of departure | 25 ° |
| Bucket dump height at maximum height | 62.8 " |
| Bucket dump angle at maximum height | 38 ° |
| Operating weight | 3,300.3 lb |
| Track width | 11 " |
| Ground clearance | 7.8 " |
| Length of Track on Ground | 43 " |
| Dump reach at maximum height | 21.9 " |
Engine
| Cylinder | 3,0 |
| Cylinder capacity | 77.3 Inch3 |
| Power rating max. | 24.8 hp |
| Operating power | 24.7 hp |
| Operating Engine speed | 2,600 1/min |
| Engine type | Diesel engine |
| Manufacturer | Yanmar |
| Engine designation | 3TNV80 FT |
Hydraulic
| Flow rate | 12.9 gal/mi |
| Auxiliary relief pressure | 3,045 psi |
Operating fluids
| Fuel Tank capacity | 16.9 gal US |
Chassis
| Tip Load | 3,507.6 lb |
| Rated Operating Capacity at 50% Tip Load | 1,752.7 lb |
| Rated Operating Capacity at 35% Tip Load | 1,225.8 lb |
